Project No.16
Cadangan Menambahbaik Sistem Agihan di Parit Markom & Benut di Daerah Pontian, Kg Maju Jaya di Daerah Johor Bahru, Pasir Gogok di Daerah Kota Tinggi, dan Cadangan Membahikpulih Tangki Larkin Perdana di Daerah Johor Bahru Pakej 2: Cadangan Menambahbaik Sistem Agihan di Kg Maju Jaya, Johor Bahru, dan Parit Markom, Pontian (“Works”)
This contract is for the construction and completion of 7ML capacity Kg. Maju Jaya reservoir and 4ML capacity Parit Markom reservoir and the scope of the Works is briefly described below:
Kg. Maju Jaya Site

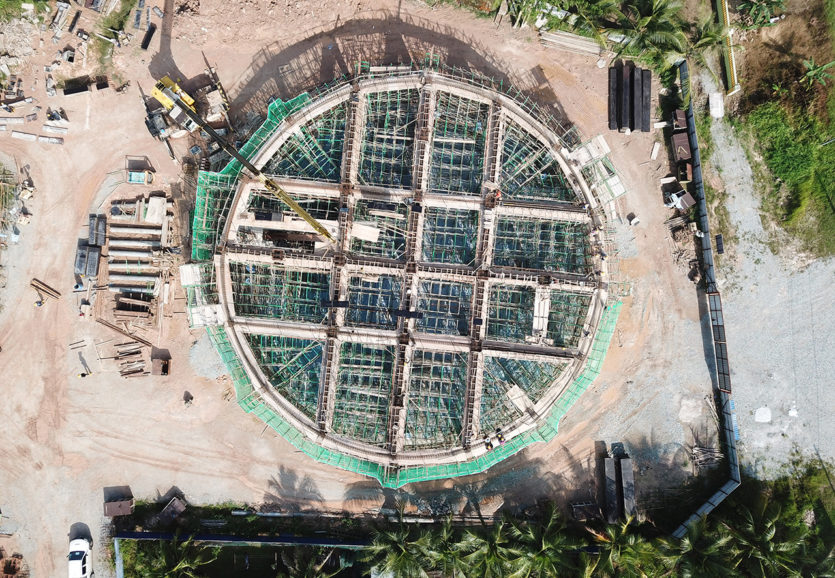

- Elevated RC Reservoir of 7.0ML capacity supported by 500mm diameter spun pile;
- About 310m length of 450mm diameter of incoming MS pipe & 800m length of 300mm diameter of outgoing MS pipe @ Kg Maju Jaya RC reservoir – with hot tapping(s) @ existing 1400mm diameter MS pipe) and pipe jacking at two (2) locations;
- M&E Works – Electromagnetic flowmeter, Electrical low voltage installation, compound lighting, lightning protection system etc. and miscellaneous works such as roads, fences, drains and signage
Parit Markom Site
- Elevated RC Parit Markom reservoir of 4.0ML capacity supported by 500mm diameter spun pile
- About 4,400m length of 300mm diameter MS pipe – with hot tapping @ existing pipe and pipe jacking at two (2) locations
- M&E Works – Electromagnetic flowmeter, Electrical low voltage installation, compound lighting, lightning protection system etc. and miscellaneous works such as roads, fences, drains and signage
